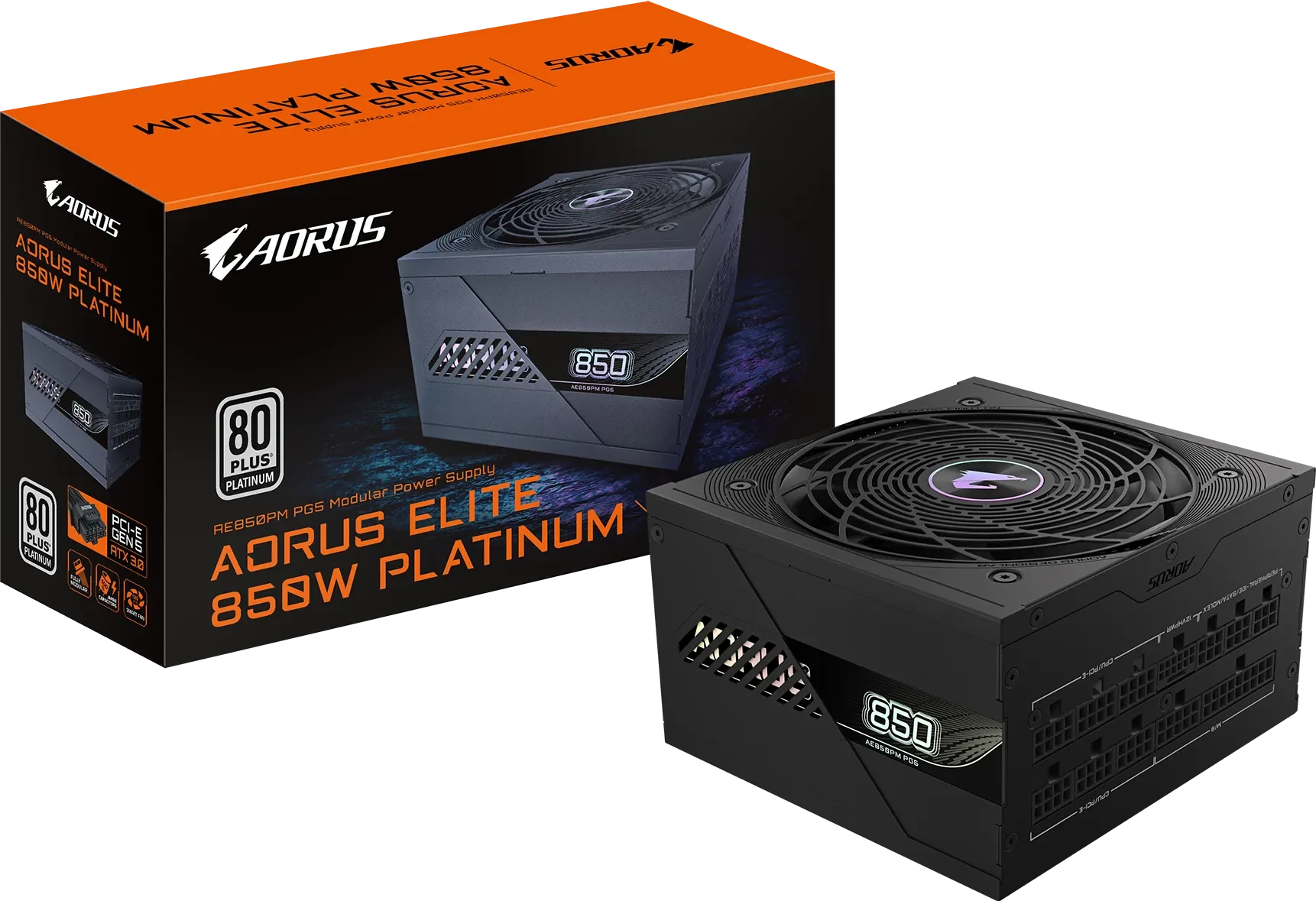

Model | GP-AE850PMPG5 |
| Type | Intel Form Factor ATX 12V v3.1 |
| PFC | ActivePFC (>0.9 typical) |
| Input Voltage | 100-240Vac (full range) |
| Input Frequency | 60-50Hz |
| Output Capacity | 850W |
| Dimensions | 150x 140 x 86mm |
| Fan Type | 120mmFluid Dynamic Bearing (FDB) Fan |
| 80 PLUS | Platinum |
| Efficiency | 92% at typical load |
| MTBF | >100,000hours |
| Protections | OVP/OPP/SCP/UVP/OCP/OTP/NLO/SIP |
| Power Good Signal | 100-150ms |
| HoldUp Time | >16ms |
| Cable Type | Flat,All white |
| Connectors | ATX/MB 20+4 Pin x 1 : 650mm*1 CPU/EPS 4+4 Pin x 2 : 700mm*2 PCI-e 16 Pin x 1: 700mm*1PCI-e 6+2 Pin x 6 : 650mm+150mm*2, 750mm*2 SATA x 8 : 600mm+150mm+150mm+150mm*2 4 Pin Peripheral x 4 : 500mm+150mm+150mm+150mm*1 |
